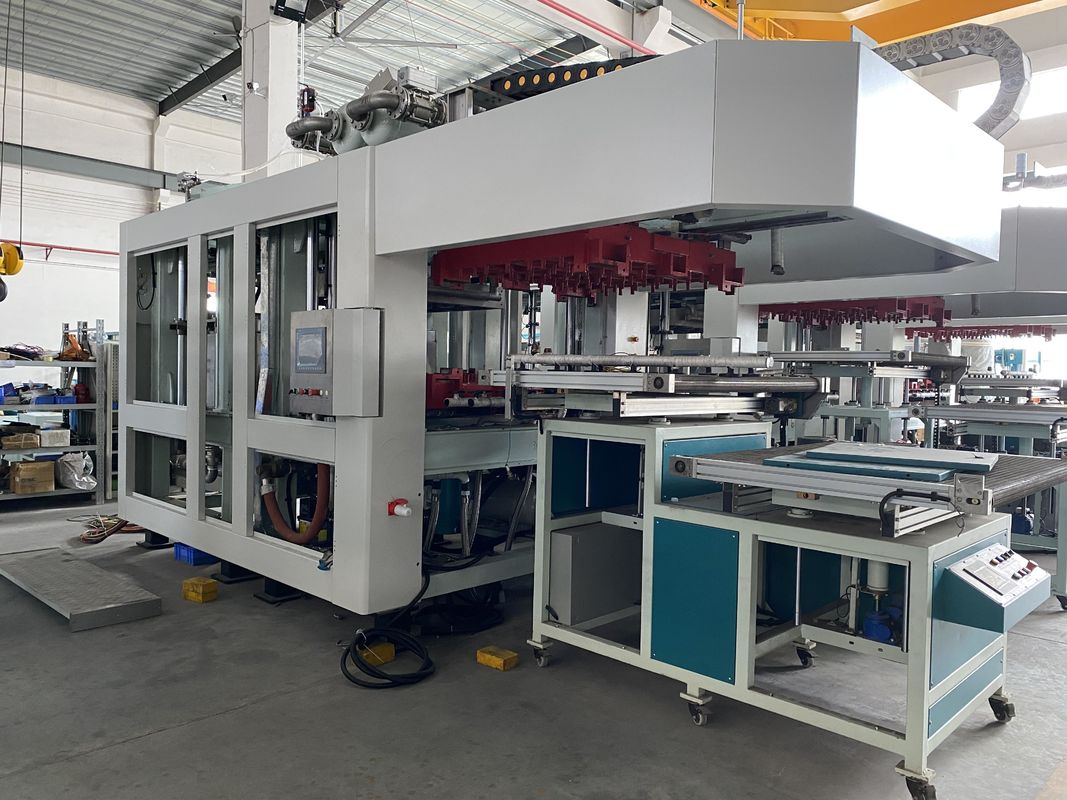

Automatic forming /drying integrative machine for high end packaging 48kw

Подробная информация о продукте:

Place of Origin:	China
Фирменное наименование:	NANYA
Сертификация:	CE...
Model Number:	YC080

Оплата и доставка Условия:

Minimum Order Quantity:	1 set
Цена:	USD90000~USD100000
Packaging Details:	Export Standard Packing
Delivery Time:	90days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1 set /3 months

контакт

Подробное описание продукта

Material:	Stainless Steel	Structure:	1 Forming station +1 Hot press station
Automation:	Fully automatic	Forming method:	Vacuum suction
Drying method:	Thermoforming	Application:	Disposable tableware, food packaging, high end packaging
Выделить:	automatic forming drying machine for packaging , high end packaging forming machine 48kw , integrative packaging machine with drying

Description

It’s mainly used for high quality pulp molded products, such as dishware, artware, disposable medical care products, high quality industrial package...
Model: YC080
Mould plate size: 800×650mm;
One set of Forming station + one set of Hot press station; Forming, drying processes are completed in one machine automatically and continuously.
Forming method: automatic vacuum suction (bottom mold up/down reciprocating type, top mold horizontal transfer).
Drying method: automatic thermoforming drying.
Heating by electricity.
Heating power: 48kw installed;
Voltage: 220V - 440V
Minimum distance between upper and lower plates: 80mm.
Maximum height of product: 130mm.
Cycle time: 40~180s depends on products.
With auto mold washing and edge washing function.
Pulp tank and forming plate which touch to the slurry are made from stainless steel.
PLC + touch screen control;
The main electrical elements are Siemens/ Schneider;
The main pneumatic element is FESTO/ SMC/ARK.

Warranty and After-Sale Service

Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	45-75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD150/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
